Cheapest 2000W inverter | JLCPCB

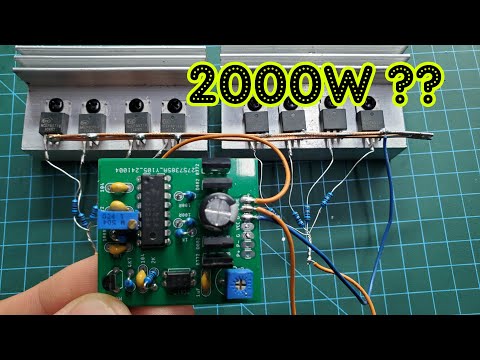

The video introduces a cost-effective, easy-to-assemble 220V inverter control module capable of delivering several kilowatts of power, emphasizing affordability, simplicity, and effective performance with various loads.
MAIN POINTS FROM TRANSCRIPT
- The inverter control module is affordable, costing just $2, and can output several kilowatts with a large transformer.
- The project uses the SG3525 IC and requires minimal external components, offering a modified sine wave output.
- Overload protection is included, ensuring the circuit shuts down to protect MOSFETs during an overload.
- The PCB and shipping cost is only $3.50, with additional discounts available for new JLCPCB account sign-ups.
TAKEAWAYS
- The inverter is designed to be both budget-friendly and easy to assemble, appealing to DIY enthusiasts.
- Using a 24V battery system doubles the inverter's power output compared to a 12V system.
- Proper heat sinks and MOSFETs are essential for achieving desired power output and reliability.
- JLCPCB offers a 3D viewer to help catch design errors before production, enhancing project accuracy.
